SH1 Track
General Details
PREMIUM CABLE MANAGEMENT SYSTEM
Designed for use with the Modular SFC3 GSS System power track, the SH1 series is engineered to exceed the highest standards of modern cable management requirements.
SH1 series is east and quick to install. Snap-on corner joints and multimedia connectors make the SH1 series the most sophisticated in the world.
FEATURES
- Dado mid-height mounting
- snap-on multimedia connectors
- precise alignment of trunking runs with corner links
- Built-in accessory rsil
- EMI shielded
- Durable and premium finishing
- UPS ready
APPLICATIONS
- System furniture
- Work stations
- Home offices
- Kitchen & Pantry
- Test labs
- Assembly Plants
- workshops
Technical Specification
| Product Description : | SH1 Power And Cable Management Track |
| Track used : | SFC3 Modular Track |
| Mount type : | Surface mount |
| Electrical | |
| Rated Voltage : | 240 V a.c. |
| Rated Current : | 32 Amp maximum |
| Material | |
| Basic Housing Profile Material : | Aluminium |
| Insulation Material : | Polycarbonate |
| Size | |
| Dimension (Width x Depth) : | 100mm x28.5mm |

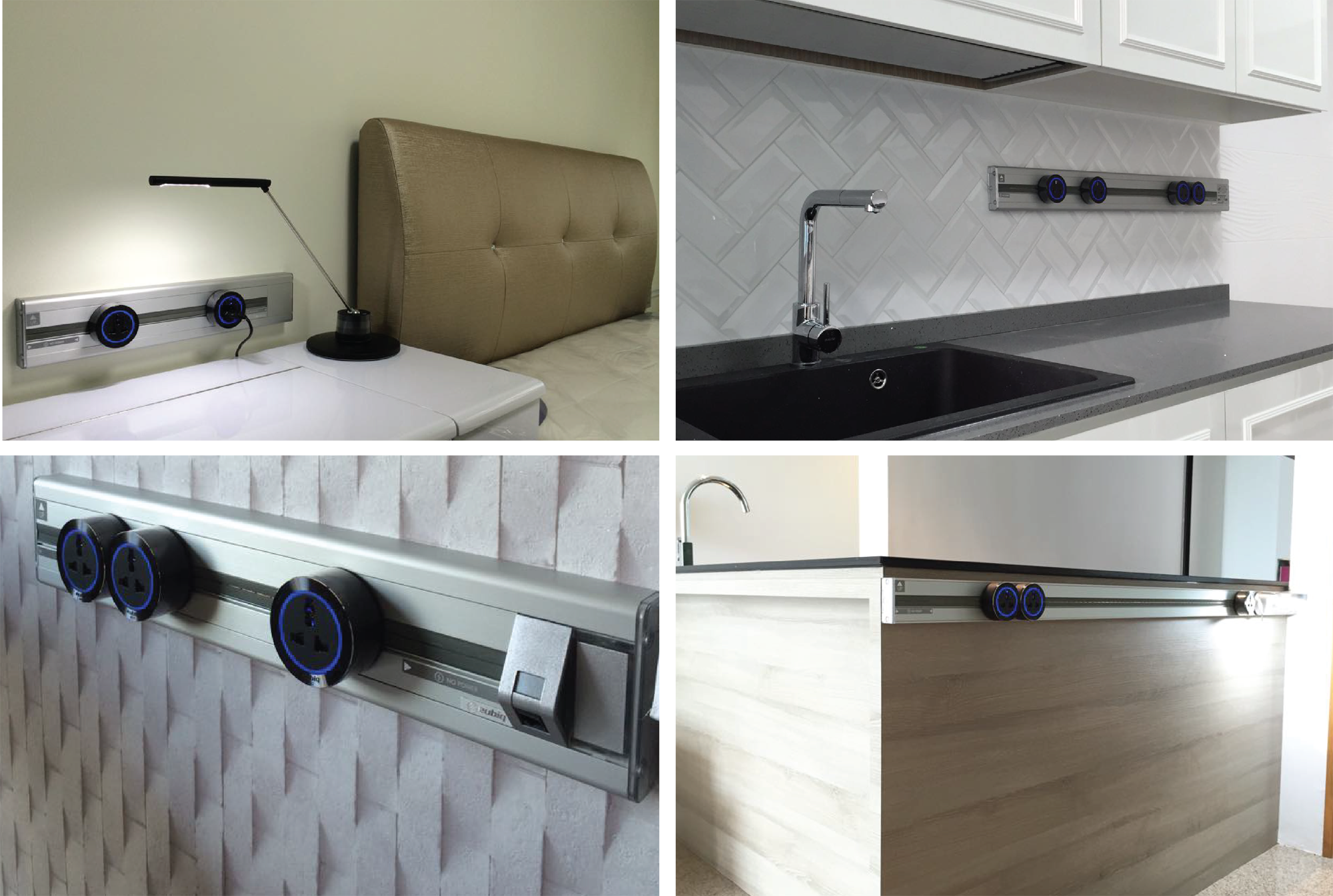

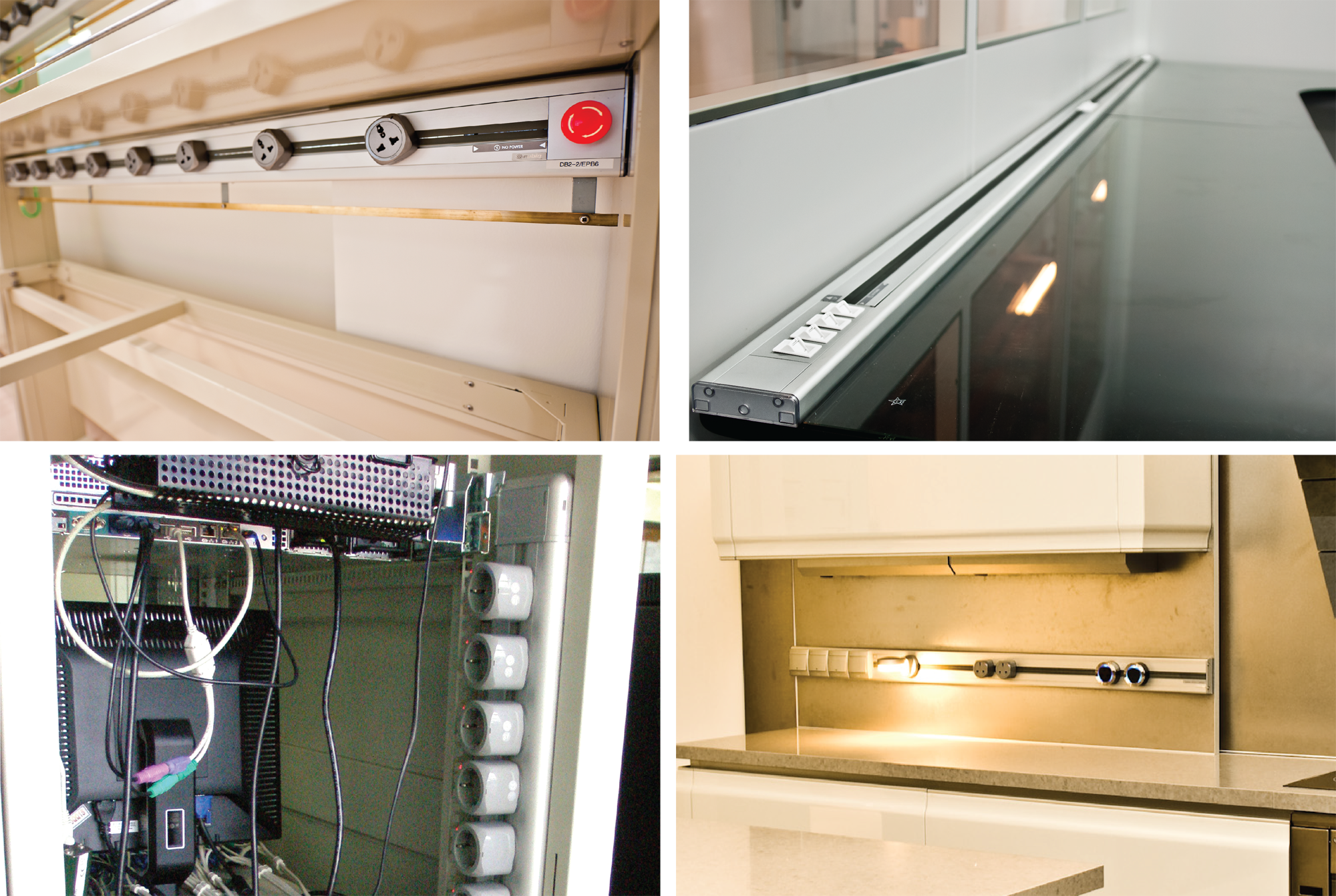

Application
INDUSTRIAL APPLICATION
RESIDENTIAL APPLICATION
Documents
